SPECIFICATIONS

APP: XMEYE
Alarm Type: FTP Photo,Email Photo,Local Alarm
Audio Input: 1 RCA,1 Channel
Audio Output: 1CH RCA
Backup Type: Hard Drive
Brand Name: smar
Certification: None
Communication Interface: RS232
Compression Format: H.264,H.264
DVR Power Supply: DC12V
Display: VGA, HDMI Output
Feature: Support  AHD Camera, IP Camera, Analog Camera
HDD Capacity: None
Hard Drive Size: 3.5''
Hard drive Interface Type: SATA
Hign-concerned Chemical: None
IP Mode: Static IP address
Name: 4ch/8ch Hybrid DVR
Network Interface: RJ45 10/100M
Network Protocol: TCP/IP
Onvif & P2P: Support
Origin: Mainland China
Phone: Mobile Phone, I-Pad, I-Phone, Etc
Power: Eu Standard, AU/UK Optional
Resolution: 5M-N1080P 960P 720P
Smart home platform: None
Supported Mobile Systems: iPhone OS,Android
Supported Operating Systems: Microsoft Windows 2000,Microsoft Windows ME,Microsoft Windows Vista,Microsoft Windows 98,Microsoft Windows 7
Technology: analog,AHD,HDCVI,HDTVI,Network
Two-way Audio: No
Video Input: 4 Channel & 8 Channel
Video Input Interface: BNC (1.0 Vp-p, 75Ω)
Video Resolution: 1080N
Video Standard: PAL
Wireless Security: wep
e-Cloud(P2P): Yes

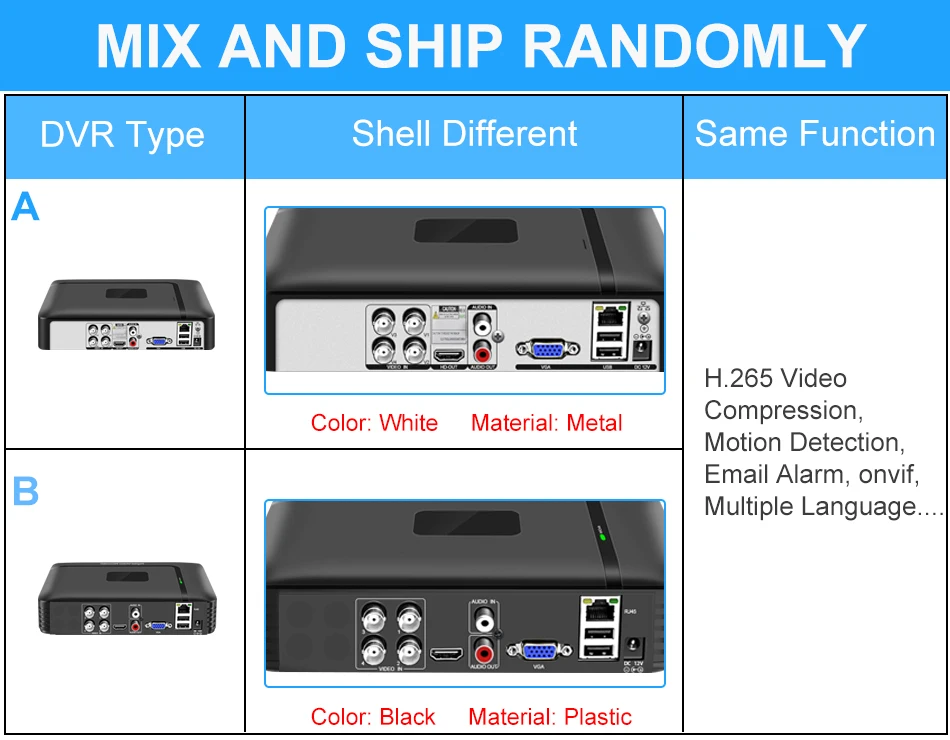

  Note:
Now We will MIX AND SHIP RANDOMLY, and some customers will receive Type Black of styles,some customers will received Type B/W of styles. If some customers only like Type Black or Type B/W , please message to us on your order.


Main Features:

- Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;
 - Support VGA, HDMI-Compatible full HD output simultaneously;
 - Support ONVIF; access third party;
 - Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
 - Support web, CMS, center platform management software MYEYE, provide SDK development;
 - Support various mobile monitoring (iPhone, Android);
 - Remote Access, With DNS (ARSP),easy to monitor remotely
 - Support AHD/TVI/CVI/CVBS/IP five signals;
 - Support Digital to analog conversion,Instant playback
- Encode ability: 4*5M-N (4CH)/ 8*5M-N(8CH)
- Decode ability: 4*5M-N (4CH)/ 8*5M-N(8CH)
- Record mode :Manual>alarm>motion detection>timing
- Video input:4 BNC(4CH)/8BNC(8CH)
- Video output :1ch VGA,1ch HDMI
- Audio input :1CH RAC
- Audio output :1CH RAC
- USB:2 USB Port
- Hard disk: 1 SATA(Each maximum support 6T )(HDD is optional)
- Power Supply:12V/2A











Models

A1004N5

A1008N5



System

Main processor

NT98321

NT98321



Interface

Preview

1/4/8/9

1/4/8/9



Video

Codec

H.265



Monitorquality

VGA(1080P at most);HDMI(1080Pat most)

VGA(1080P at most);HDMI(2Kat most)



Preview ability

4*5M-N@20fps(6 in 1)
4*4M-N@30fps(6 in 1)
4*1080P(6 in 1)
default:5M-N

8*5M-N@12fps(6 in 1)
8*4M-N@15fps(6 in 1)
8*1080P@15fps(XVI)
default:5M-N



Encodeability

4*5M-N@20fps(6 in 1)
4*4M-N@28fps(6 in 1)
4*1080P@25fps(6 in 1)<
